Power Feed for the
X & Z(head) axis

Home





I have been making a power feed for the X axis on the table of my new gearhead mill. I am making a power feed for the Z axis(lift the head). I have used two identical dc gear motors. They are 90 volt dc and are 71 rpm. I am using a single motor controller for both axis since they are never used together. A toggle switch(top of the box switches between the two axis.




DC Motor Controller

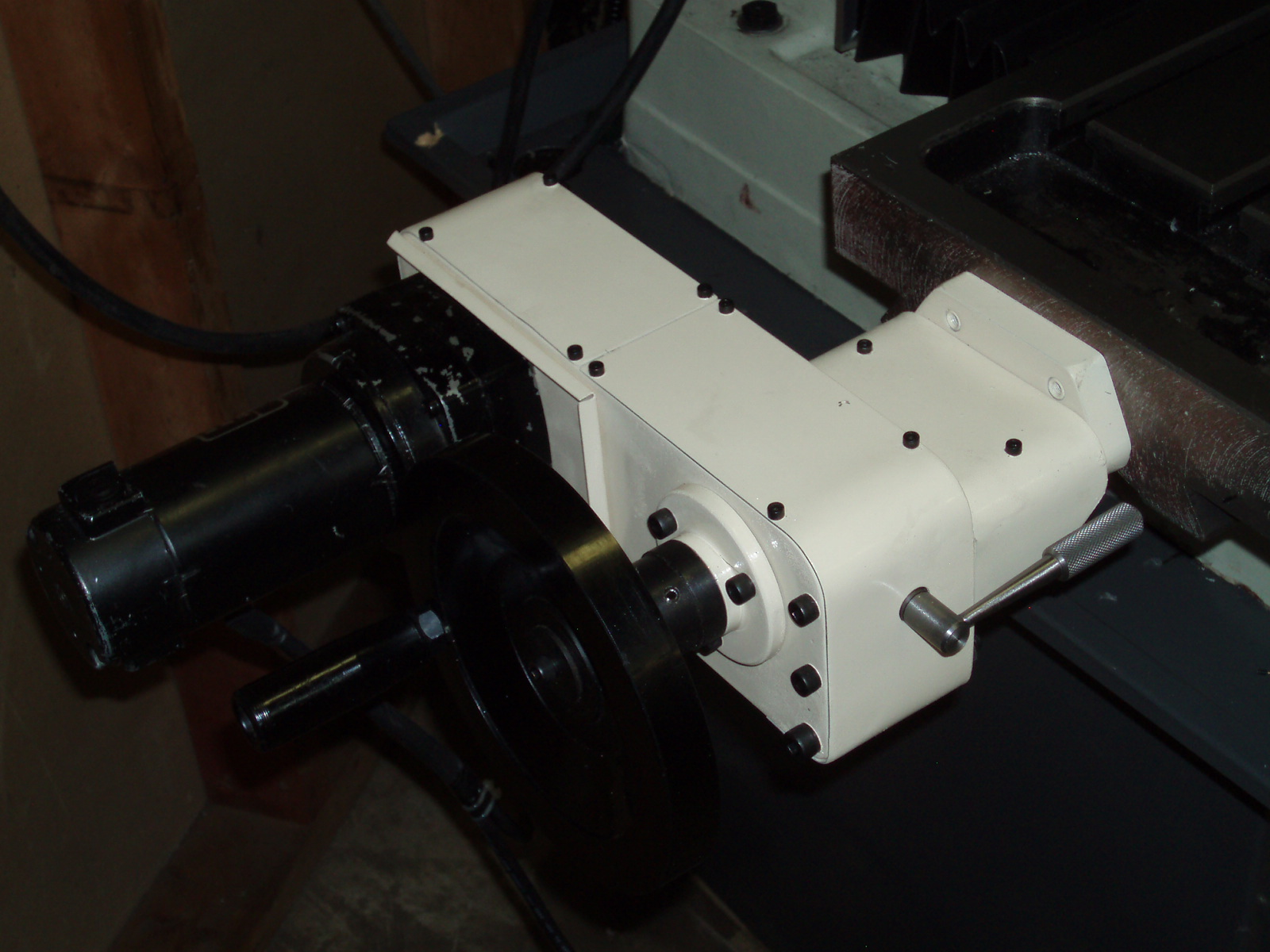

X drive picture #1

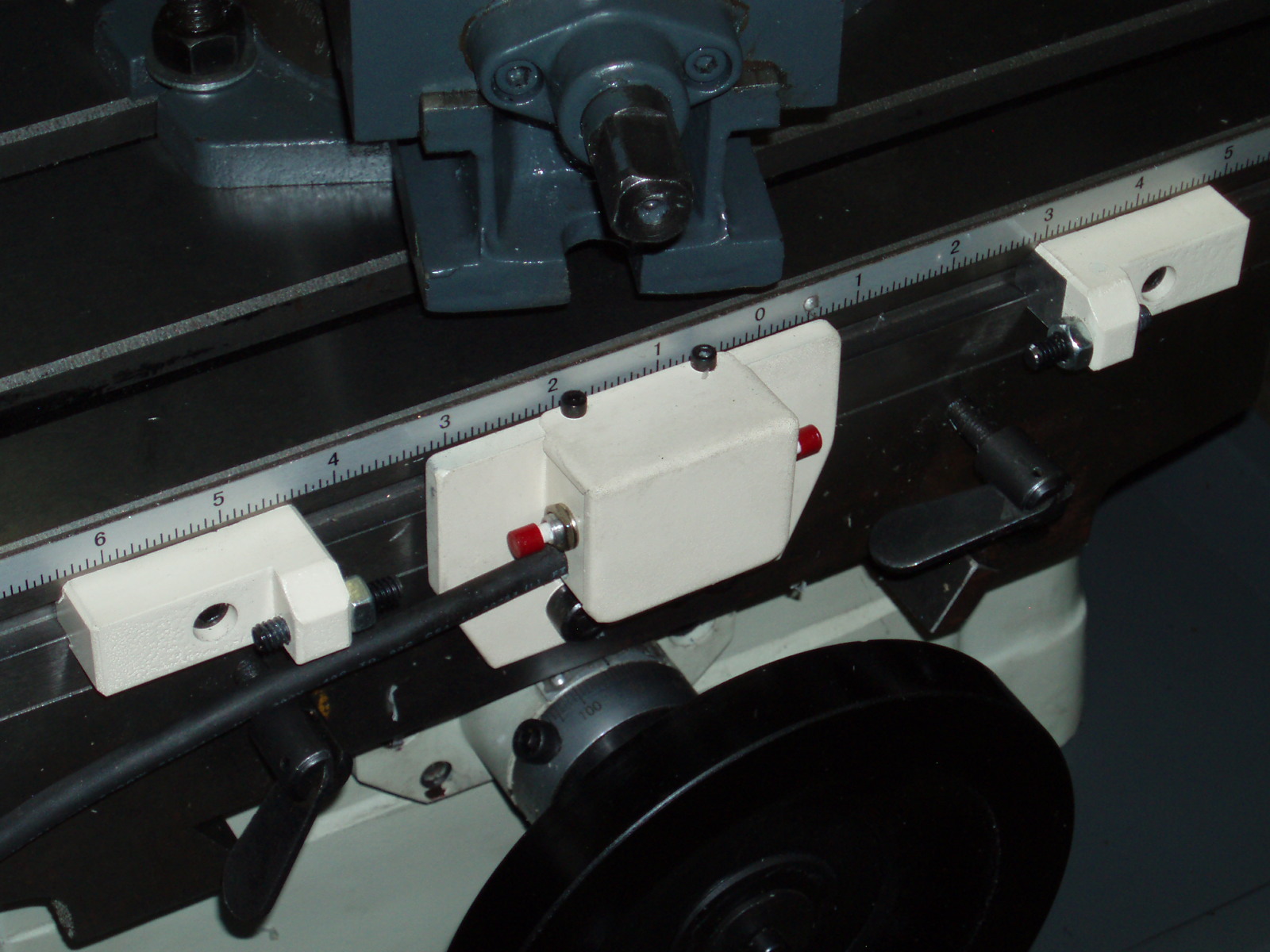

X drive picture #2
X drive picture #3
X drive picture #4
X drive picture # 5
X drive picture # 6
X drive picture # 7
Head Lift - Z axis pic #1
Head Lift - Z axis pic #2
Ready for paint and final wirering
